Reports and Analysis

This section offers an overview of the System Logs, Device Control Logs and Shadows, Content Aware Logs and Shadows, Admin Actions, Statistics, and other helpful information.

Details regarding eDiscovery Scans and Enforced Encryption can be viewed in their specific sections and not in the Reports and Analysis section.

As an additional security measure, this section may be protected by an additional password set by the Super Administrator, from System Configuration > System Security.

Logs Report

From this section, you can view, sort, and export the main logs in the system. There are several event types such as User Login, User Logout, AD Import, AD Synchronization, Uninstall Attempt, etc., included in this section. Additionally, the main Device Control logs can be viewed in this section.

note

Use the Filters option to view and sort different log types and then export the result list.

File Tracing

This section offers an overview of trace files that have been transferred from a protected computer to a portable device or another computer on the network, and vice versa.

A special mention is given here to the “File Hash” column. Endpoint Protector computes an MD5 hash for most of the files to which the File Tracing feature applies to. This way, mitigating threats coming from changing the file content is ensured.

You can export the search results (as an Excel, PDF, or CSV) or Create and Export containing the entire log report as a .CSV file.

File Tracing Events by Direction

The "File Tracing Events Matrix by Direction" table is a valuable reference for understanding how Endpoint Protector categorizes file tracing events based on data transfer directions. It offers insight into event handling and helps users customize data protection policies effectively. Whether tracking local transfers or interactions with removable devices and network shares, this table provides a clear overview. It's an essential resource for configuring data protection policies in the Endpoint Protector environment, ensuring strong security and compliance.

note

This matrix refers to clients from the 5.9.0.0 release and higher.

The following table provides a detailed view of the events.

File Tracing Events Matrix by Direction

Direction	Windows	macOS	Linux
Local -> Local (Partition 0)	N/A	N/A	N/A
Local -> Removable	Src & Dest	Src & Dest	Src & Dest
Local -> Network share	Src & Dest	Src & Dest	N/A
Local -> Partition 1	Src & Dest	N/A	N/A
Removable -> Local (Partition 0)	Src & Dest	Src & Dest	Src & Dest
Removable -> Removable	Src & Dest	Dest	Src & Dest
Removable -> Network share	Src & Dest	Dest	N/A
Removable -> Partition 1	Src & Dest	Src & Dest	Src & Dest
Network share -> Local (Partition 0)	Src & Dest	Src & Dest	N/A
Network share -> Removable	Src & Dest	Dest	N/A
Network share -> Network share	Src & Dest	Dest	N/A
Network share -> Partition 1	Src & Dest	Src & Dest	N/A
Partition 1 -> Local (Partition 0)	N/A	N/A	N/A
Partition 1 -> Removable	Src & Dest	Src & Dest	Src & Dest
Partition 1 -> Network share	Src & Dest	Src & Dest	N/A
Partition 1 -> Partition 0	N/A	N/A	N/A

Legend:

• Partition 0 -> Boot Partition (OS)
• Partition 1 -> 2nd Partition (e.g., 2nd OS or Data Partition)

Content Aware Report

From this section, you can view Content Aware Logs in the system and detect data incidents corresponding to the Content Aware Policies applied.

When using the latestEndpoint Protector client, you can view log details structured per file scanned.

Expand each entry from the log report list to view the Log Details expanded section, providing the following information:

• Policy – select an active policy from the dropdown list
• Policy name – the name of the selected policy
• Policy type – the type of the selected policy
• Items type – the Policy Denylist category selected
• Matched type – the Policy Denylist type selected
• Matched items – click the link to view a pop-up window with the list of matched items

• Count – the number of matched items

Use the Show/Hide Columns dropdown to customize which columns are visible in the report. The Date/Time(Client UTC) column is available in this dropdown but is hidden by default.

From the Filters section, check the Include old logs before 5.7 upgrade option from the filter section to include all logs in your searches. If the option isn't selected, the filters will apply only to the new structure of logs. The Date/Time(Client UTC) field is also available as a filter option.

For Mac users, when the Deep Packet Inspection feature is enabled on the Endpoint Protector agent for Mac, there might be certain scenarios where the agent doesn't provide full destination details for files being transferred from a network share through monitored applications, such as browsers. In such cases, the destination information may not be fully captured in the monitoring process

For Linux users, the Endpoint Protector agent doesn't support network share visibility, except when files are transferred from a network share through Deep Packet Inspection monitored applications, such as browsers. In other scenarios, network share visibility isn't available.

Export Content Aware Reports

You can export Content Aware Logs as an Excel, PDF, or CSV or create and export the entire log report as a CSV or XLSX file.

Excel/PDF/CSV – situated above the Content Aware Reports list, this will export only the default columns. The Date/Time(Client UTC) column is included in exports when selected via Show/Hide Columns.

Create Export – situated below the Content Aware Reports list, this will create an export containing all data, including the expanded Logs Details section with columns Policy Type, Policy Name, Item type, Matched type, Matched items and Count.

After the message that is displayed that A new export has been made and is available on Export List, click View Export List to open the list of Reports, where you can download or delete a report.

Export List

The Export List shows all exports you have created, regardless of log type. Access it at any time by clicking View Export List in any log report section.

From the Export List you can download completed exports or delete entries you no longer need.

Background processing

When you click Create Export, Endpoint Protector queues the request and processes it in the background. The server processes one export at a time. This means:

• You don't need to stay on the page while the export runs.
• If an export is already running, your new request waits in the queue.
• You can't create additional exports while the banner is showing.

When an export is in progress, a banner appears at the top of the page:

A log Report Export is currently running and will be ready soon. Until then, no additional Exports can be created and the displaying Log Report Results may be slower.

Wait for the current export to finish before starting a new one. The banner disappears when processing is complete. Large exports may take several minutes depending on the number of records and the load on the server.

note

If a system backup is running at the same time as an export, queued exports are cancelled automatically. Create the export again after the backup completes.

Export retention

Completed exports are automatically deleted after 7 days.

Admin Actions

This section offers an overview of every important action performed in the interface. From the Action column, you can view additional information.

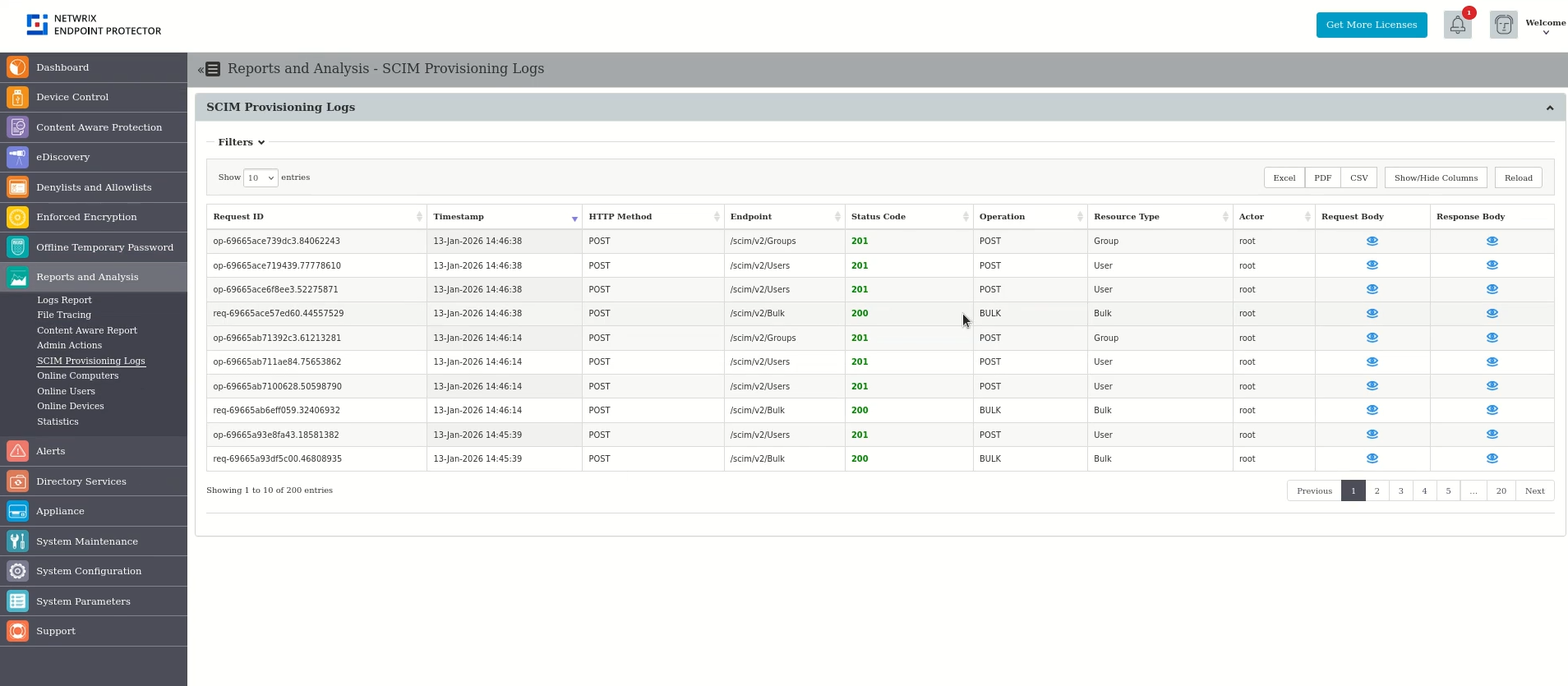

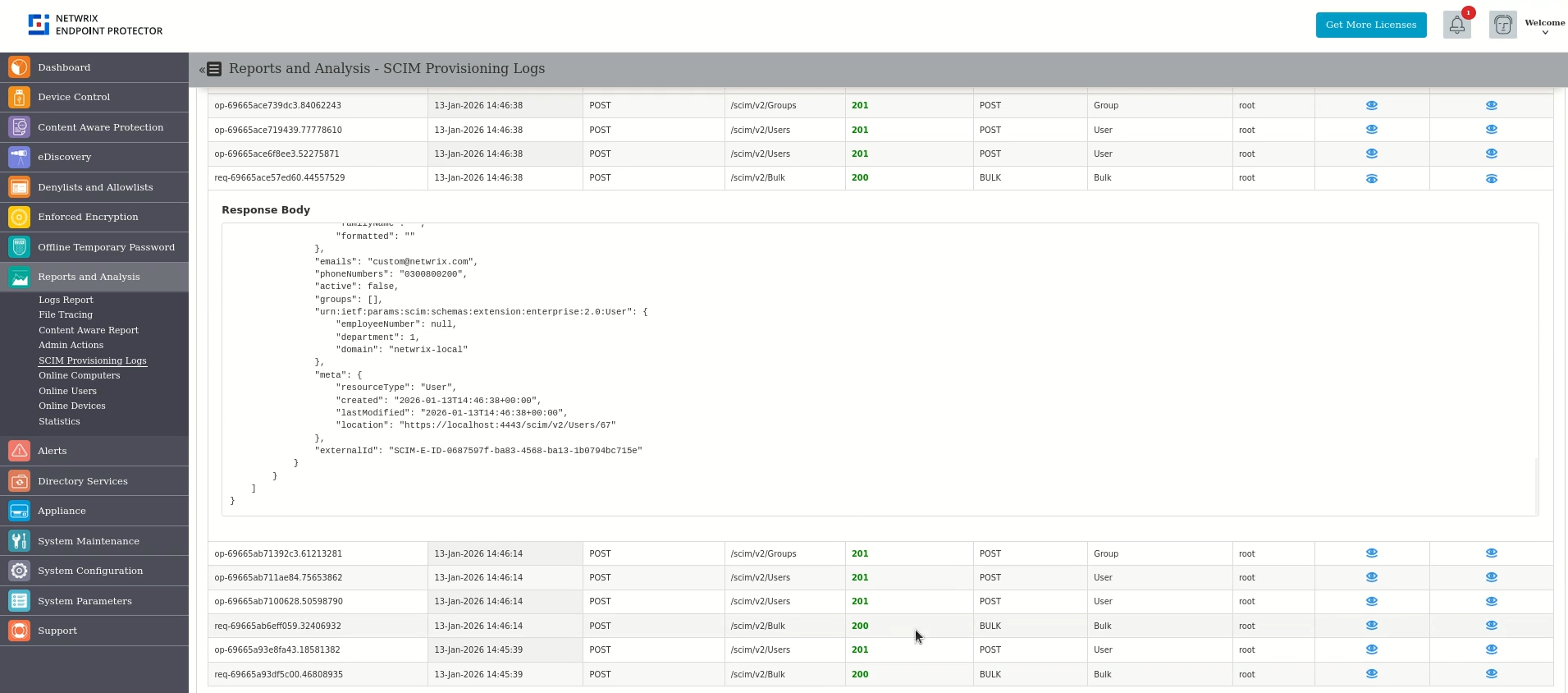

SCIM Provisioning Logs

The logs display detailed information for each SCIM request, including:

• Request ID
• Timestamp
• HTTP Method
• Endpoint
• Status Code
• Operation type (POST, PATCH, DELETE, BULK)
• Resource type (User, Group)
• Actor
• Request and response bodies

These logs help administrators:

• Verify successful provisioning
• Troubleshoot synchronization issues
• Support audit and compliance requirements

Online Computers

This section offers an overview of computers registered on the system which have an established connection with the server. If the Refresh Interval for computer X is 1 minute, then computer X was communicating with the server in the last 1 minute.

Online Users

This section offers an overview of users registered on the system which have an established connection with the server.

Online Devices

This section provides an overview of devices registered on the system which have an established connection with the server.

Statistics

The Statistics module lets you view system activity related to data traffic and device connections. The integrated filter makes generating reports quick and easy; simply select the field of interest and click Apply Filter.
